Surgical Microscope ROMS101

ROMS101
I. Microscope
1. Eyepiece: 12.5X
2. ★Main lens viewing angle: 0°-180°
3. Interpupillary distance: 51-75 mm
4. Diopter adjustment: ±7D
5. Large objective lens: F200
6. X-Y travel range: 50 mm x 50 mm
7. X-Y speed adjustment: ≤2 mm/s (foot-operated)
8. Magnification: 4.1X to 24.6X (foot-operated) motorized continuous zoom
9. Field of view: 8 mm to 50 mm
10. Working distance: ≥190 mm
11. Fine focus travel: 50 mm (foot-operated)
12. Fine focus speed: ≤2 mm/s
13. Color filters: Black dot filter, GG435 blue light blocking filter, red-blocking filter, 20% neutral density filter
II. Illumination
1. ★Type: Main illumination source + independent red-blocking light source LED Light Source
2. Main Illumination: 4° coaxial LED, 3500K, CRI > 90
3. Red Reflection Illumination: -2° coaxial LED, 3500K, CRI > 85
4. Main Illumination Control: Six-step Dimming
5. Red Reflection Illumination Control: On/Off

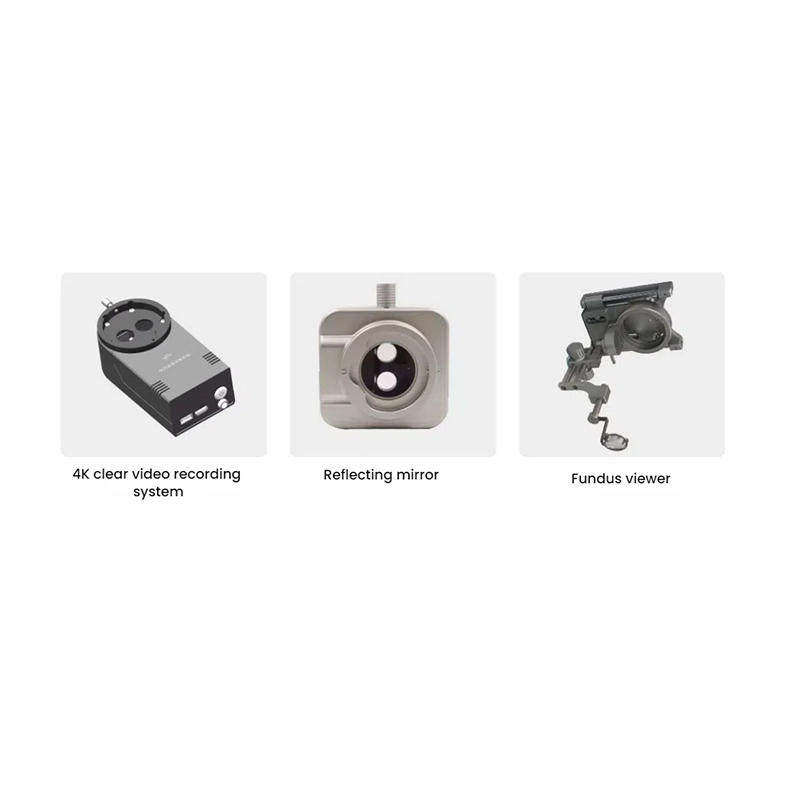

III. Expandable Accessories
1. 4K HD Video Recording System
2. Inverter, Non-contact Wide-angle Fundus Lens for Posterior Segment Surgery
3. Laser Filter, 532nm Cutoff, Protection Level OD ≥ 5
IV. Base
1. Extended Arm Length: 1300mm
2. Vertical Adjustment Range: ±150mm
3. Base Dimensions: 840mm × 840mm
4. Footswitch (14 buttons): X/Y directional movement, fine focus, continuous zoom of main mirror, illumination brightness adjustment, red reflector on/off
5. Total Weight: Approximately 185kg
V. Electrical
1. Input voltage: 100V-240V, 50/60Hz
2. Fuse specification: 250V, 10A
3. Electrical safety standard: IEC60601-1:2012 / 9706.1-2020, Class I

Consult

Features
Technical Indicators

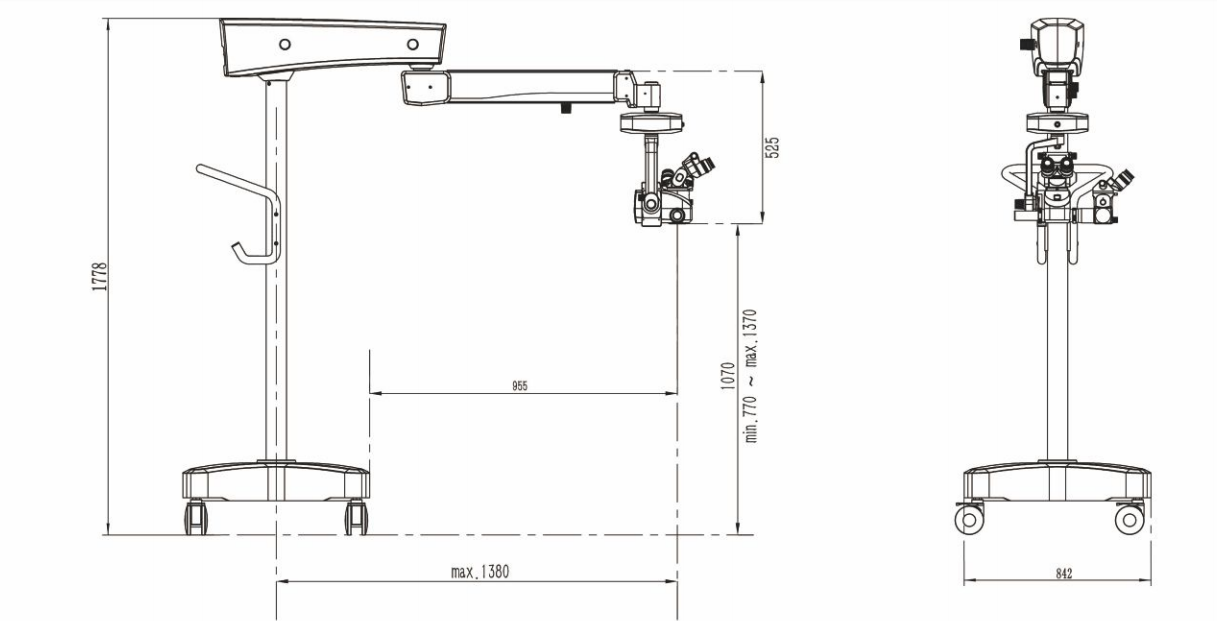

Overall Dimension

Dual-light source LED coaxial lighting, main lighting brightness adjustable in six levels. Both the main lighting and red reflective lighting are equipped with retinal protection filters. Adopt high-quality motor and low electronic control noise. Use imported gas springs to ensure safe and stable use. Excellent depth of field and binocular imaging make the operator more comfortable.
Optical system Optical path type Single binocular Eyepiece 12.5X Diopter adjustment range -7D～+7D Large objective lens Standard F=200mm Working distance 190mm Primary mirror magnification ratio 1:6 continuous zoom Magnification 4.1X~24.6X Field of view diameter 8mm～50mm Binocular tube pupil distance adjustment range 51mm～75mm Main binocular tube angle 0°~180°adjustable Fine focus stroke 50 mm Fine focus speed ≤2mm/s Color filters Main lighting: black dot film, GG435 blue light blocking film, red-free film, red reflection lighting: 20% neutral density film Bracket system Casters 4x100mm Net weight About 185kg Maximum extension radius of microscope cross arm 1380mm Balance arm system Gas springs XY shifter moving range 50 mm × 50 mm, electric, one-button reset XY movement speed ≤2mm/s Lens tilt angle Manual, +15°/-50° Rotation angle Large cross arm: 360° Balance arm: ±135° XY displacement: ±135° Lighting system Main lighting Coaxial, LED, 3500K, CRI>90 Red reflective lighting -2° coaxial, LED, 3500K CRI>85 electrical system Input voltage 100-240V~, 50/60 Hz Fuse 250V,10A Electrical safety IEC60601-1:2012,Class I Accessories/options Binocular tube 45° lens barrel, 0°~180° adjustable lens barrel Optical Splitter 50%/50%,30%/70%* CCD interface Compatible with standard C-mount CCD cameras CCD camera Digital CCD HD Camera* HD video recording system Integrated 4K60 frame, HDMI output Foot switch Medical 14-button foot switch Disinfection cover Disposable microscope sterilization cover*, handle sterilization cover

Optical path type	Single binocular
Eyepiece	12.5X
Diopter adjustment range	-7D～+7D
Large objective lens	Standard F=200mm
Working distance	190mm
Primary mirror magnification ratio	1:6 continuous zoom
Magnification	4.1X~24.6X
Field of view diameter	8mm～50mm
Binocular tube pupil distance adjustment range	51mm～75mm
Main binocular tube angle	0°~180°adjustable
Fine focus stroke	50 mm
Fine focus speed	≤2mm/s
Color filters	Main lighting: black dot film, GG435 blue light blocking film, red-free film, red reflection lighting: 20% neutral density film

Casters	4x100mm
Net weight	About 185kg
Maximum extension radius of microscope cross arm	1380mm
Balance arm system	Gas springs
XY shifter moving range	50 mm × 50 mm, electric, one-button reset
XY movement speed	≤2mm/s
Lens tilt angle	Manual, +15°/-50°
Rotation angle	Large cross arm: 360° Balance arm: ±135° XY displacement: ±135°

Main lighting	Coaxial, LED, 3500K, CRI>90
Red reflective lighting	-2° coaxial, LED, 3500K CRI>85

Input voltage	100-240V~, 50/60 Hz
Fuse	250V,10A
Electrical safety	IEC60601-1:2012,Class I

Binocular tube	45° lens barrel, 0°~180° adjustable lens barrel
Optical Splitter	50%/50%,30%/70%*
CCD interface	Compatible with standard C-mount CCD cameras
CCD camera	Digital CCD HD Camera*
HD video recording system	Integrated 4K60 frame, HDMI output
Foot switch	Medical 14-button foot switch
Disinfection cover	Disposable microscope sterilization cover*, handle sterilization cover
