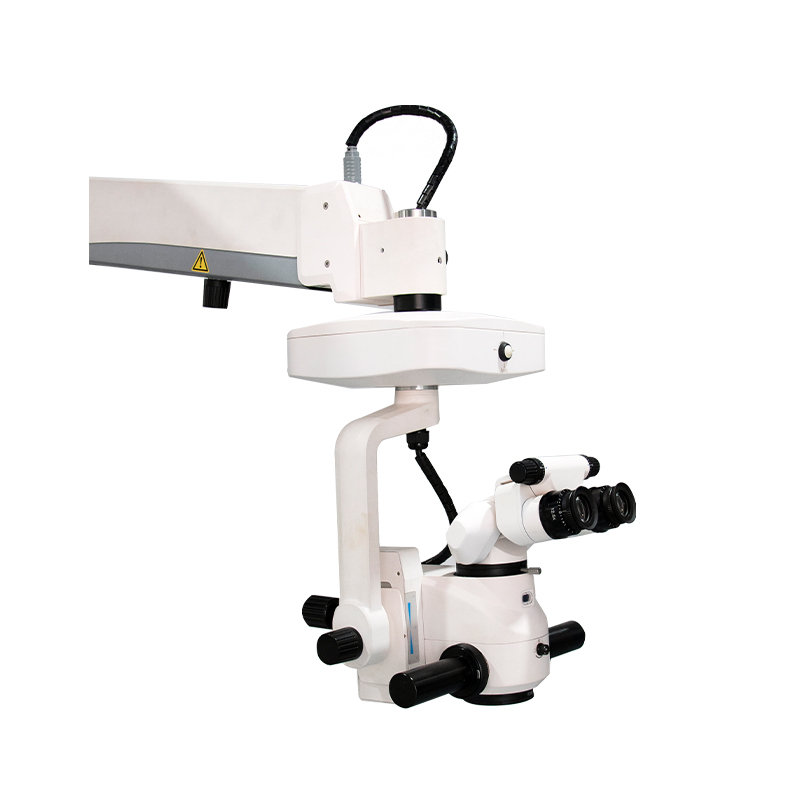

Surgical Microscope ROMS100

ROMS100
I. Microscope
1. Eyepiece: 12.5X
2. ★ Main Observation Angle: 0° - 180°
3. Interpupillary Distance: 51 - 75 mm
4. Diopter Adjustment: ±7D
5. Large Objective: F200
6. X-Y Motion Range: 50mm x 50mm
7. X-Y Speed Adjustment: ≤2mm/s (Foot-operated)
8. Magnification: 4.1X - 24.6X (Foot-operated) Motorized Continuous Zoom
9. Field of View: 8mm - 50mm
10. Working Distance: ≥190mm
11. Fine Focus Travel: 50mm (Foot-operated)
12. Fine Focus Speed: ≤2mm/s
13. Filters: Black Dot Filter, GG435 Blue Light Blocker, Red-Free Filter, 20% Neutral Density Filter
II. Auxiliary Mirror
1. Format: Stereoscopic
2. Magnification: 5.4X, 8X, 12.2X
3. Field of View: 34.6mm, 23mm, 14.6mm
4. Observation Angle: 45°
5. Interpupillary Distance: 55-75mm
III. Illumination
1. ★ Configuration: Main Illuminator + Independent Red Reflector (LED)
2. Main Illuminator: 4° coaxial LED, 3500K, CRI > 90
3. Red Reflector: -2° coaxial LED, 3500K, CRI > 85
4. Main Illuminator Control: Six-step Dimming
5. Red Reflector Control: On/Off

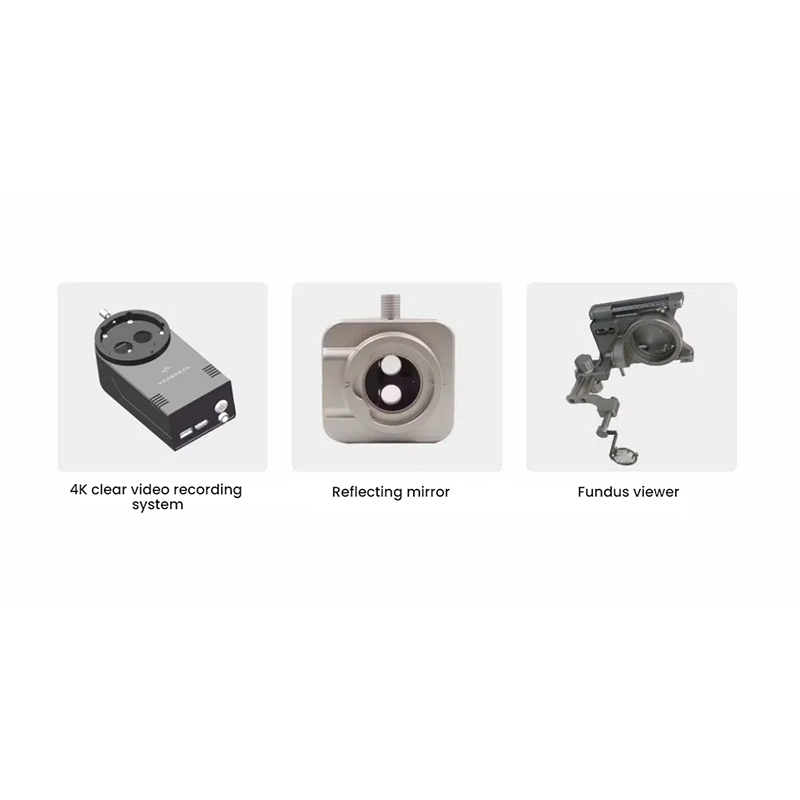

IV. Expandable Accessories
1. 4K HD Video Recording System
2. Inverter, Non-contact Wide-angle Fundus Lens for Posterior Segment Surgery
3. Laser Filter (532nm cutoff), Protection Level OD ≥ 5
V. Base
1. Extended Arm Length: 1300mm
2. Adjustment range: ±150mm
3. Base dimensions: 840mm x 840mm
4. Foot switch (14 keys): X/Y direction movement, fine focus, continuous zoom of main mirror, illumination brightness adjustment, red reflector on/off
5. Total weight: Approximately 185kg
VI. Electrical
1. Input voltage: 100V-240V, 50/60Hz
2. Fuse specification: 250V, 10A
3. Electrical safety standard: IEC60601-1:2012 / 9706.1-2020, Class I

Consult

Features
Technical Indicators

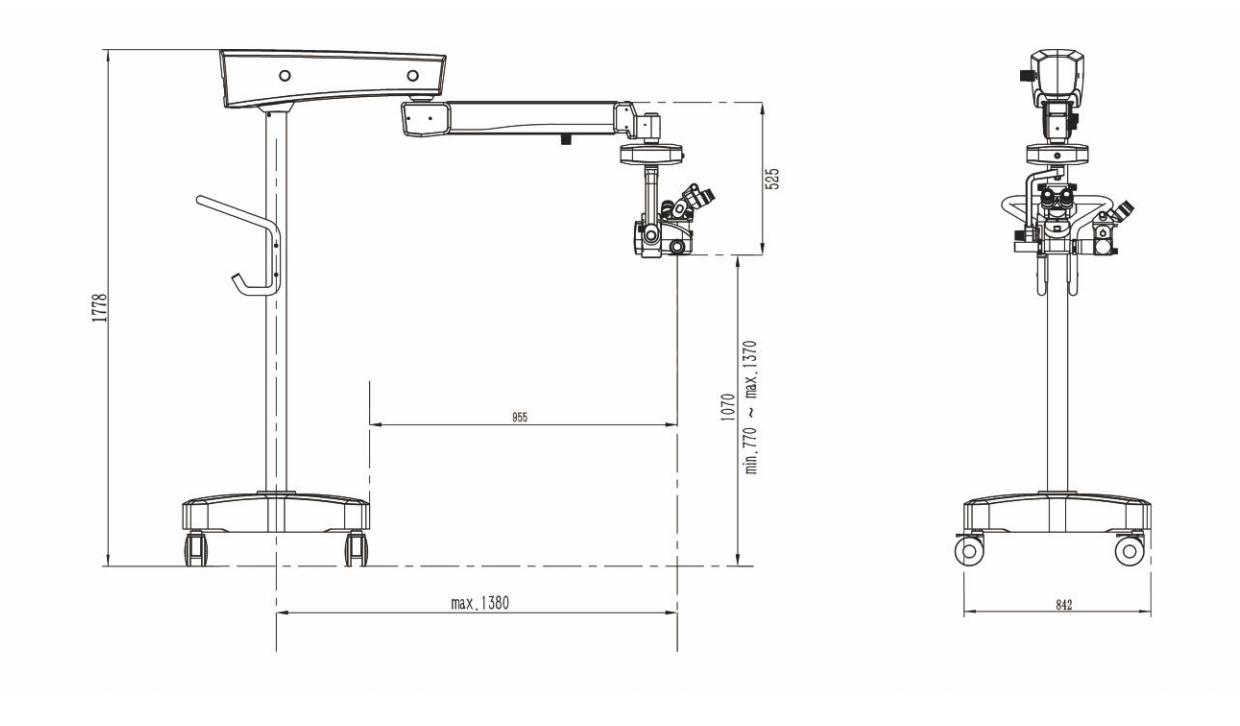

Overall Dimension

Dual-light source LED coaxial lighting, main lighting brightness adjustable in six levels. Both the main lighting and red reflective lighting are equipped with retinal protection filters. Adopt high-quality motor and low electronic control noise. Use imported gas springs to ensure safe and stable use. Excellent depth of field and binocular imaging make the operator more comfortable.
Optical system
Optical path type
Two-person four-eye
Eyepiece
12.5X
Diopter adjustment range
-7D～+7D
Large objective lens
Standard F=200mm
Working distance
190mm
Primary mirror magnification ratio
1:6 continuous zoom
Magnification
Primary mirror: 4.1X~24.6X
Assistant mirror: 5.4X, 8X, 12.2X
Field of view diameter
Primary mirror: 8mm~50mm
Assistant mirror: 34.6mm, 23mm, 14.63mm
Main binocular tube interpupillary distance adjustment range
51mm~75mm
Assistant binocular tube interpupillary distance adjustment range
55mm～75mm
Assistant binocular tube angle
45° non-adjustable
Main eyepiece tube angle
0°~180°adjustable
Fine focus stroke
50mm
Fine focus speed
≤2mm/s
Color filters
Main lighting: black dot film, GG435 blue light blocking film, red-free film,
red reflection lighting: 20% neutral density film
Bracket system
Casters
4x100mm
Net weight
About 185kg
Maximum extension radius of microscope cross arm
1380mm
Balance arm system
Gas springs
XY shifter moving range
50mm×50mm, electric, one-button reset
XY movement speed
≤2mm/s
Lens tilt angle
Manual, +15°/-50°
Rotation angle
Large cross arm: 360°
Balance arm: ±135°
XY displacement: ±135°
Lighting system
Main lighting
Coaxial, LED, 3500K, CRI>90
Red reflective lighting
-2° coaxial, LED, 3500K CRI>85
electrical system
Input voltage
100-240V~, 50/60 Hz
Fuse
250V,10A
Electrical safety
IEC60601-1:2012,Class l
Accessories/options

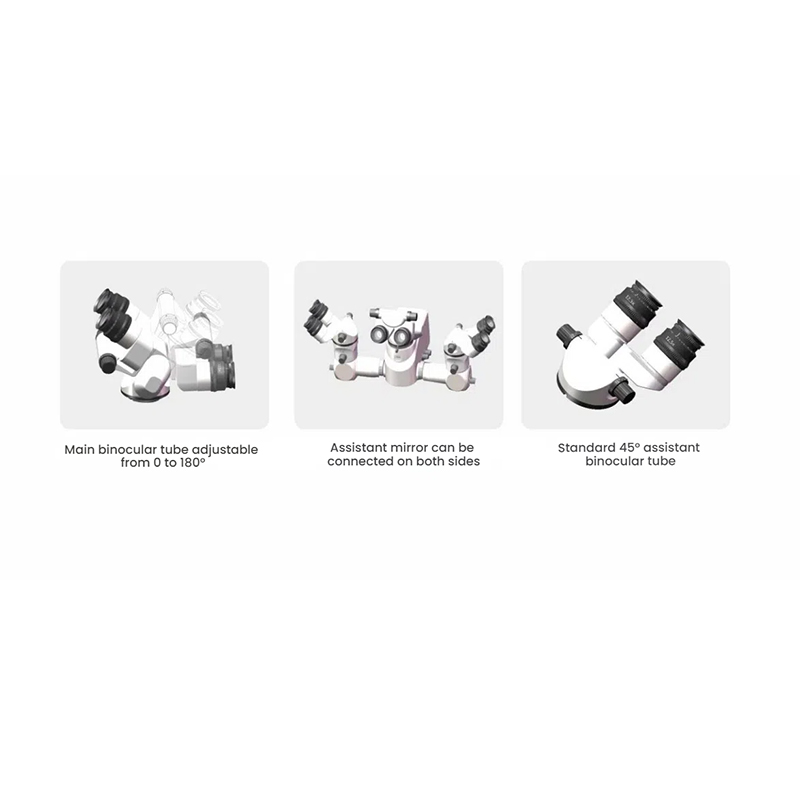

Binocular tube
45° lens barrel
0°~180° adjustable lens barrel
Optical Splitter
50%/50%,30%/70%*
CCD interface
Compatible with standard C-mount CCD cameras
CCD camera
Digital CCD HD Camera*
HD video recording system
Integrated 4K60 frame, HDMI output
Foot switch
Medical 14-button foot switch
Disinfection cover
Disposable microscope sterilization cover*, handle sterilization cover
* Items marked with asterisks are not produced by our company

Optical path type	Two-person four-eye
Eyepiece	12.5X
Diopter adjustment range	-7D～+7D
Large objective lens	Standard F=200mm
Working distance	190mm
Primary mirror magnification ratio	1:6 continuous zoom
Magnification	Primary mirror: 4.1X~24.6X Assistant mirror: 5.4X, 8X, 12.2X
Field of view diameter	Primary mirror: 8mm~50mm Assistant mirror: 34.6mm, 23mm, 14.63mm
Main binocular tube interpupillary distance adjustment range	51mm~75mm
Assistant binocular tube interpupillary distance adjustment range	55mm～75mm
Assistant binocular tube angle	45° non-adjustable
Main eyepiece tube angle	0°~180°adjustable
Fine focus stroke	50mm
Fine focus speed	≤2mm/s
Color filters	Main lighting: black dot film, GG435 blue light blocking film, red-free film, red reflection lighting: 20% neutral density film

Casters	4x100mm
Net weight	About 185kg
Maximum extension radius of microscope cross arm	1380mm
Balance arm system	Gas springs
XY shifter moving range	50mm×50mm, electric, one-button reset
XY movement speed	≤2mm/s
Lens tilt angle	Manual, +15°/-50°
Rotation angle	Large cross arm: 360° Balance arm: ±135° XY displacement: ±135°

Main lighting	Coaxial, LED, 3500K, CRI>90
Red reflective lighting	-2° coaxial, LED, 3500K CRI>85

Input voltage	100-240V~, 50/60 Hz
Fuse	250V,10A
Electrical safety	IEC60601-1:2012,Class l

Binocular tube	45° lens barrel 0°~180° adjustable lens barrel
Optical Splitter	50%/50%,30%/70%*
CCD interface	Compatible with standard C-mount CCD cameras
CCD camera	Digital CCD HD Camera*
HD video recording system	Integrated 4K60 frame, HDMI output
Foot switch	Medical 14-button foot switch
Disinfection cover	Disposable microscope sterilization cover*, handle sterilization cover
* Items marked with asterisks are not produced by our company
