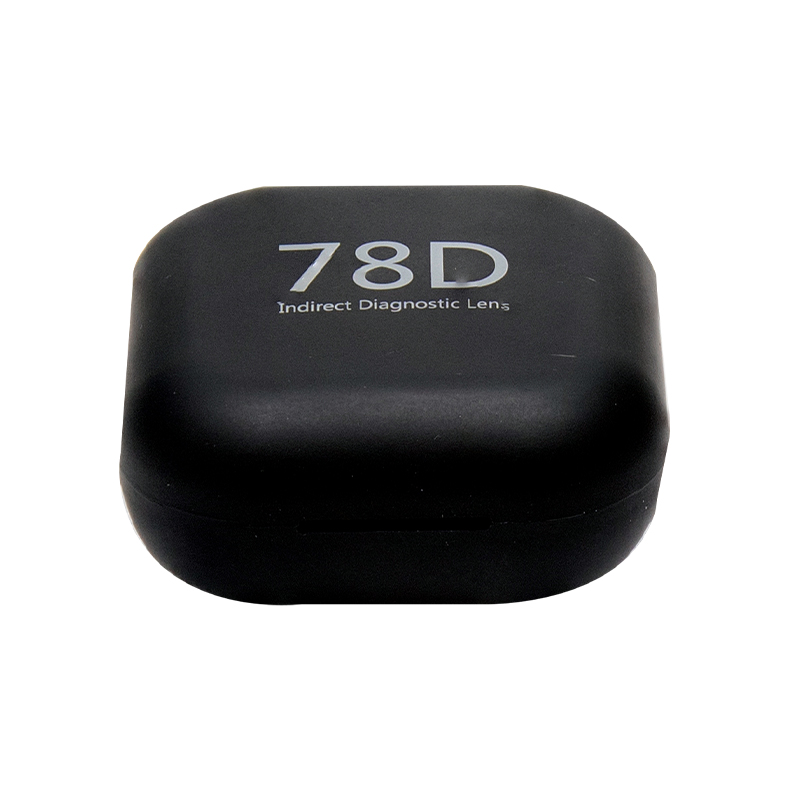

Aspheric Lenses 78D

78D
Clear Aperture 26mm
Focal Length 16.1mm
Working Distance 8mm
Static Field of View 81°
Dynamic Field of View 145°
Laser Spot Magnification 1.02X
Clear Aperture 27.5mm
Image Magnification 0.98X
Aspheric lenses utilize the optical principle of lens magnification to increase the operator's viewing angle and facilitate the observation of object details. They can also be used in conjunction with an indirect ophthalmoscope or slit lamp microscope to examine the posterior vitreous and fundus of the human eye.
When used in conjunction with an indirect ophthalmoscope or a slit lamp microscope, the aspheric lens can clearly observe the retina, optic nerve, macula and blood vessels. The imaging has the characteristics of a wide field of view, a large image, a strong sense of three-dimensionality, and no contact with the eye surface (no contact with the cornea).
Using high-quality, highly transparent optical glass, high contrast, less stray light, and more fidelity images.
The mirror surface adopts super strong coating, which is wear-resistant and shatter-resistant.
The mirror protection is waterproof and stain-resistant, making it easier to clean.

Product Name

Image magnification

Laser point magnification

Static Field of View

Dynamic Field of View

Working distance

Clear aperture

20D

2.92X

0.34X

52°

/

45mm

47.5

78D

0.98X

1.02X

81°

145°

8mm

27.5

90D

0.75X

1.34X

90°

150°

6mm

20.2

×
