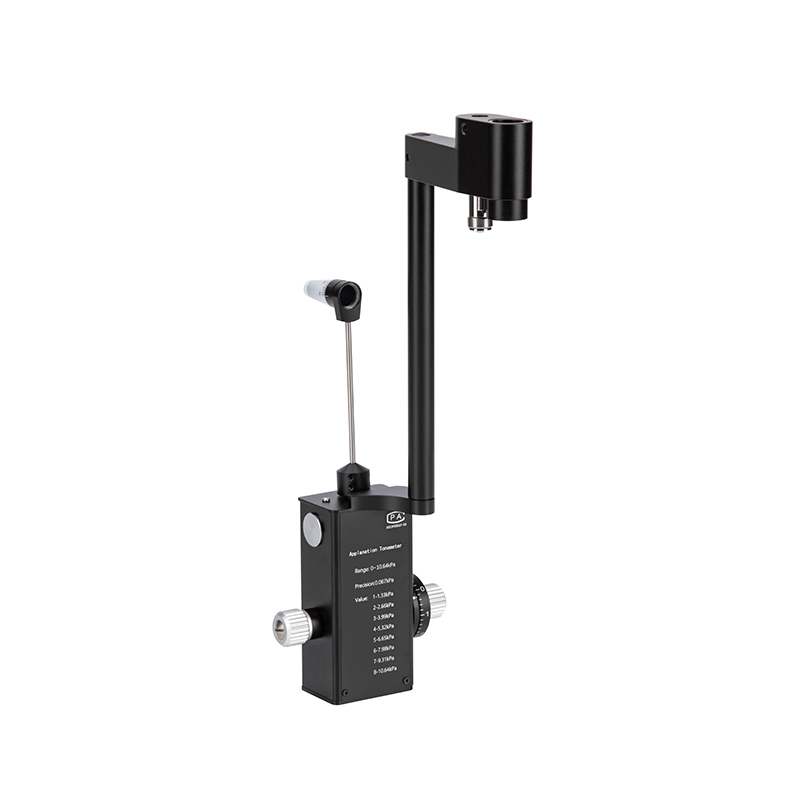

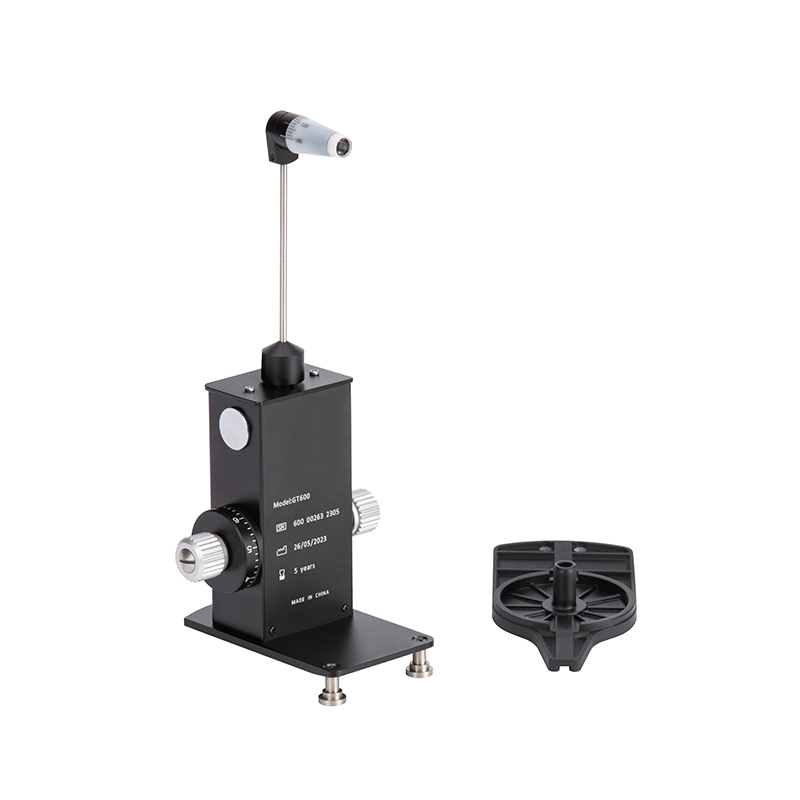

Applanation Tonometer

GT600
1. Intraocular pressure measurement range: 0-80 mmHg
2. Tonometer applanation circle diameter: 3.06 mm ± 0.02 mm
3. Force per scale division: 1.96 mN
4. Pressure rod reversal sensitivity: ≤ 0.2 g (≤ 0.49 mN)

Consult

Features
Technical Indicators
Overall Dimension

The GT600 applanation tonometer is an optical applanation type. When connected to a slit lamp microscope, it uses an applanation prism embedded with a double prism to apply a certain pressure to flatten a certain area (a circular pressure surface with a diameter of 3.06mm) in the center of the examinee's cornea. Under the slit lamp microscope, with the help of fluorescein and blue light, two green semi-rings are seen, whose inner edges intersect with each other, so that the intraocular pressure reading can be directly obtained on the force dial. As a medical device for measuring intraocular pressure in adults, the GT600 tonometer has passed the type evaluation of the China National Institute of Metrology and obtained the "Type Approval Certificate of Measuring Instruments" of the People's Republic of China, meeting the requirements for mandatory metrological verification products stipulated in the National Metrology Law.
Intraocular pressure measurement range 0~80mmHg The corresponding force per small grid 1.96mN Measurement standard deviation ±0.98mN or ±3.0% of rated value Flatness of the prism front surface <3μm Reversal force ≤0.49mN Flattening circle diameter 3.06mm±0.02mm Flattened area 7.354mm² Net weight 0.5Kg

Intraocular pressure measurement range	0~80mmHg
The corresponding force per small grid	1.96mN
Measurement standard deviation	±0.98mN or ±3.0% of rated value
Flatness of the prism front surface	<3μm
Reversal force	≤0.49mN
Flattening circle diameter	3.06mm±0.02mm
Flattened area	7.354mm²
Net weight	0.5Kg
